Standard Smoke Curtain incorporating fiberglass fabric.

DSI-C1HR Automatic Fire Protective Smoke Curtain

DSI-C1HR Automatic Fire protective Smoke Curtains are totally gravity fail safe and incorporate the latest in electronic technology. As a result DSI-C1HR Curtain is one of the most advanced, yet cost effective systems on the market.

The assembly comprises a fire rated fiberglass fabric wound around a roller which encases a compact head box that is typically installed above the ceiling with side guides that are buried in the wall. This makes the system virtually invisible until activated.

Limit switch control has been replaced with current-limiting systems to determine the upper position of the curtain. The 24v motor will retract the curtain until the bottom bar pulls against the underside of the head box. The current drawn by the motor will begin to rise, this will be detected by the motor control circuit and the supply will be stepped back to a holding voltage of approximately 4 volts.

Upon receipt of a fire or test signal the holding voltage will be removed to the motor. The weight of the bottom bar will force the motor windings to return generating a back EMF. This facility ensures a controlled descent of the curtain even in the event of total power failure.

This method of operation should be used to deploy the system at all times. A curtain that is powered down under normal test conditions from either mains power or the battery supply is only proving that it can deploy when powered. This does not confirm the ability to fail safe.

The curtain fabric DSI-1HR Rated is a specially formulated medium weight fiberglass fabric, coated with aluminum pigmented polyurethane on both sides of the fabric which creates a reflective heat shield and enhances durability and flexibility of the fabric. It is tested to BS 476 Pt 6 (fire propagation) and Pt 7 (surface spread of flame), ASTM E84 & UL 723.

When tested to EN 12101-1 as part of the DSI Smoke and Fire Curtain, DSI-1HR Rated has successfully passed Annex B (material durability cycle test), Annex C (air leakage test) and Annex D (120 minutes fire resistance). The DSI Smoke and Fire Curtain using the DSI-1HR Rated fabric is approved for a CE D120 label. In addition, when tested in accordance to UL 10D, at 1800F, the material achieved a 1 hour fire rating.

Fire Rated Glass Alternative

Fire rated glass is not only extremely expensive, but also has size limitations. This means unsightly mullions will have to be incorporated in most applications. Use the DSI Fire Curtain in front of non-rated glass serves as an architecturally please and cost-effective alternative.

Features for DSI-C1HR Smoke Curtain:

  • Cost effective
  • Creates open space for your building design
  • Compact design , low headroom requirements
  • Almost completely hidden
  • Lightweight, requires little to no structural support
  • Unlimited width, custom sizes
  • Code compliant
  • Multiple egress options
  • Battery backup system standard
  • Fail safe system with automatic reset

Compliant with

UL 10 D: Fire protective Smoke Curtains 60 minutes
UL 1784: Air leakage test of door assemblies
UL 10 C: Without Hose Stream Test – 20 minutes
UL 10 B: Without Hose Stream – 20 minutes
UL 864: Control Units for Fire Protective Signaling Systems

Control System

  • Group Control Panel
  • Split Drop Delay
  • Delayed Descent
  • Motor Control Cards

Options

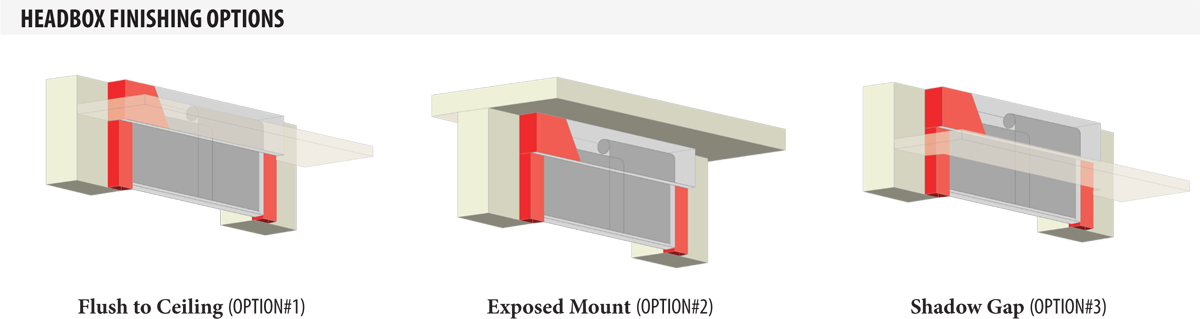

Headbox options

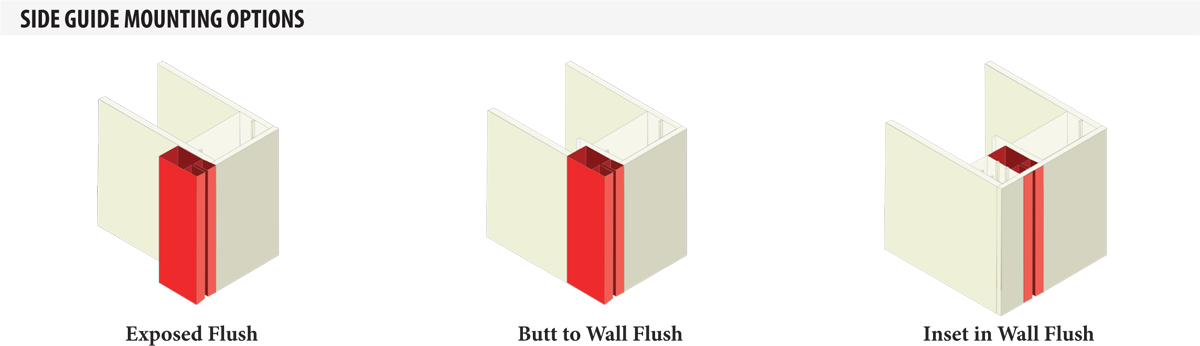

Side Guide Options

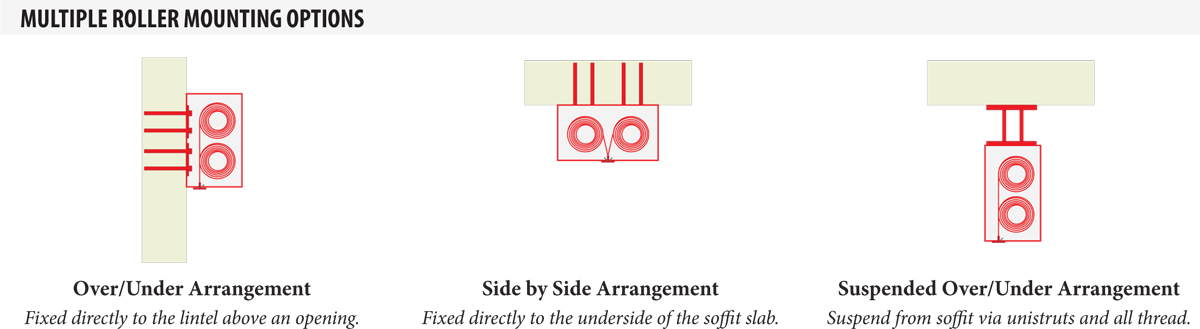

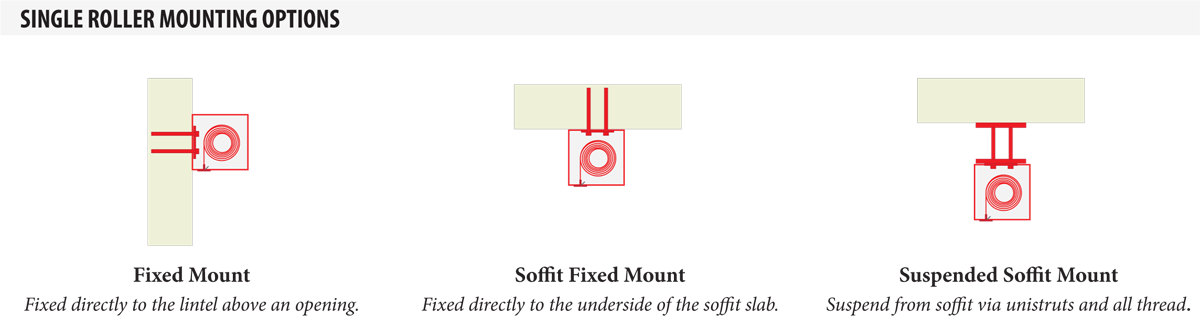

Single Roller Options
